HDPE Spigot Fittings

• Application
• other, Water Supply, Gas Pipeline, Agricultural Irrigation, Industrial Pipeline

• Bend Radius
• 15 x Outer Diameter

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Butt Fusion, Socket Fusion

• Connection Type
• Spigot/Butt Fusion

• Diameter
• 20 mm to 400 mm

• Flexibility
• Good Flexibility

• Length
• Custom as per fitting type

• Material
• Other

• Material Grade
• PE63 / PE80 / PE100

• Outer Diameter
• 20 mm to 630 mm (available sizes)

• Product Type
• Other, Spigot Fittings

• Rated Pressure
• PN 6 to PN 16

• Sealing Type
• Fusion Welded

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Coupler, Reducer, End Cap, or Custom

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +80C

• Tensile Strength
• 22 MPa

• Thickness
• As per SDR (Standard Dimension Ratio)

• Tolerance
• 0.5 mm

• Usage
• Pipeline Joining, Water Supply, Gas Distribution

• Yield Strength
• 19 MPa

• Application
• other, Water Pipeline, Gas Pipeline, Industrial Piping, Irrigation

• Bend Radius
• 10 x OD

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Spigot

• Connection Type
• Butt Fusion, Spigot Joint

• Diameter
• 20 mm to 400 mm

• Flexibility
• Good

• Length
• As per fitting type (from 63 mm to 630 mm OD)

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 20 mm to 630 mm

• Product Type
• Other, SDR 11 HDPE Spigot Fittings

• Rated Pressure
• PN16 (16 Bar)

• Sealing Type
• Heat Fusion Sealing

• Section Shape
• Round

• Shape
• Other, Elbow, Tee, Reducer, Coupler, End Cap, Stub End, etc.

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• > 19 MPa

• Thickness
• Varies as per SDR 11 standard

• Tolerance
• +/- 1 mm

• Usage
• Pipe Jointing, Water Supply, Gas Distribution

• Yield Strength
• > 15 MPa

• Application
• other, Water Supply Lines

• Bend Radius
• 90 (Standard Elbow)

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Spigot

• Connection Type
• Spigot

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• 85 mm

• Material
• PVC

• Material Grade
• UPVC

• Outer Diameter
• 40 mm

• Product Type
• Other, Spigot Elbow

• Rated Pressure
• PN10

• Sealing Type
• Solvent Weld

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• 0C to 60C

• Tensile Strength
• 45 MPa

• Thickness
• 3 mm

• Tolerance
• 0.1 mm

• Usage
• Plumbing, Irrigation

• Yield Strength
• 40 MPa

• Application
• other, Water supply, Irrigation, Industrial & Construction piping

• Bend Radius
• Not designed for bending

• Coating Type
• Uncoated

• Color
• White

• Connection
• Other, Spigot

• Connection Type
• Spigot Socket

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• As per standard fitting dimensions

• Material
• Other

• Material Grade
• uPVC Grade 1

• Outer Diameter
• From 20 mm to 315 mm (as per size selection)

• Product Type
• Other, Spigot Tee

• Rated Pressure
• PN 6, PN 10, or PN 16

• Sealing Type
• Rubber ring or solvent cement joint

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• 0C to 60C

• Tensile Strength
• Minimum 45 MPa

• Thickness
• 3-5 mm (varies by size)

• Thread Type
• Not threaded (Plain)

• Tolerance
• 0.5 mm

• Usage
• Plumbing and piping systems

• Yield Strength
• Approximately 38 MPa

• Application
• other, Plumbing, sewage, drainage systems

• Coating Type
• Uncoated

• Color
• Grey

• Connection
• Other, Spigot

• Connection Type
• Spigot (plain end)

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• As per standard (typically 50-150 mm based on diameter)

• Material
• Other

• Material Grade
• UPVC Grade 1

• Outer Diameter
• 75 mm, 110 mm, 160 mm, 200 mm, 250 mm, 315 mm (varies by model)

• Product Type

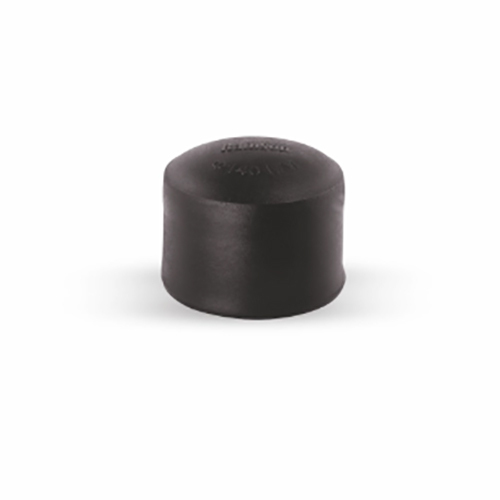

• Other, Spigot End Cap

• Rated Pressure
• PN 6 / PN 10

• Sealing Type
• Push fit or solvent weld

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• 0C to 60C

• Tensile Strength
• 45 MPa (approx)

• Thickness
• Customizable (commonly 3-12 mm)

• Tolerance
• 1 mm

• Usage
• Pipe closure/End capping

• Yield Strength
• 40 MPa (approx)

• Application
• other, Water, Oil, Gas Pipeline Connections

• Coating Type
• Optional Zinc / Nickel Coated

• Color
• Silver / Golden / Grey

• Connection
• Other, Spigot End

• Connection Type
• Spigot with Grooved or Plain End

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• 30 mm - 150 mm

• Material
• Other

• Material Grade
• SS304 / SS316 / CW617N / UPVC

• Outer Diameter
• 12 mm - 80 mm

• Product Type

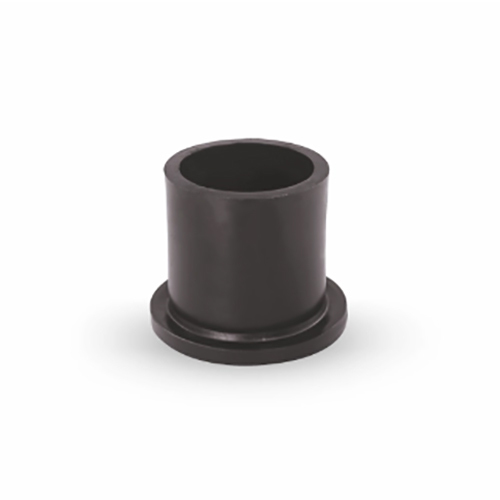

• Other, Spigot Tail Piece

• Rated Pressure
• Up to 16 Bar

• Sealing Type
• O-ring / Gasket Sealing (subject to design)

• Section Shape
• Round

• Shape
• Other, Cylindrical with Spigot End

• Standard
• Other

• Surface Treatment
• Other, Polished / Electroplated / Plain

• Temperature Range
• -20C to 120C

• Tensile Strength
• 480 MPa (for SS)

• Thickness
• 1.5 mm - 4 mm

• Tolerance
• 0.2 mm

• Usage
• Pipe Fitting / Plumbing

• Yield Strength
• 190 MPa (for SS)

• Application
• other, Water Supply, Irrigation, Plumbing, Drainage

• Color
• Grey

• Connection
• Other, Spigot

• Connection Type
• Socket/Spigot

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• 175 mm

• Material
• Other

• Material Grade
• PVC-U Grade 1

• Outer Diameter
• 160 mm (Large End), 110 mm (Small End)

• Product Type
• Other, Spigot Reducer

• Rated Pressure
• PN 10 (10 Bar)

• Sealing Type
• Rubber Gasket (Optional)

• Section Shape
• Round

• Shape
• Other, Reducing Coupler

• Standard
• Other

• Surface Treatment
• Other, Smooth, Uncoated

• Temperature Range
• 0C to 60C

• Tensile Strength
• 45 MPa

• Thickness
• 3 mm

• Thread Type
• Not Threaded

• Tolerance
• 0.1 mm

• Usage
• Plumbing and Piping Systems

• Yield Strength
• 38 MPa

• Application
• other, Industrial, Residential, Agricultural Piping Systems

• Coating Type
• Uncoated

• Color
• Grey

• Connection
• Other, Socket (Solvent Weld) End

• Connection Type
• Spigot (Socket) Joint

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• 90 mm

• Material
• Other

• Material Grade
• Virgin UPVC

• Outer Diameter
• 63 mm x 50 mm x 63 mm

• Product Type

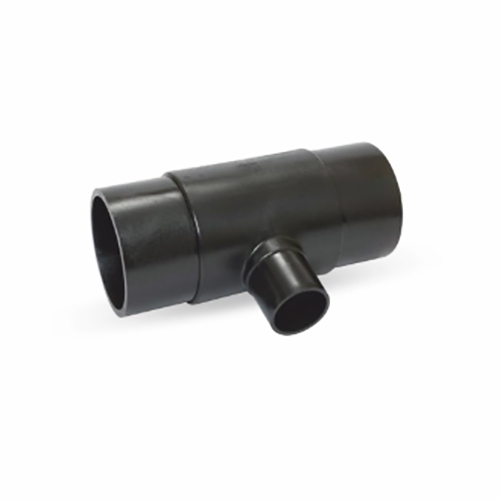

• Other, Spigot Reducing Tee

• Rated Pressure
• PN10 (10 Bar)

• Sealing Type
• Solvent Welded Joint

• Section Shape
• Round

• Shape
• Other, Tee (Reducing)

• Standard
• Other

• Surface Treatment
• Other, Smooth Surface Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• Mpa 45

• Thickness
• 3 mm

• Tolerance
• 1%

• Usage
• Plumbing, Water Supply, Drainage

• Yield Strength
• Mpa 40

• Application
• other, Water supply, Drainage Systems, Waste Water

• Bend Radius
• As per standard, 45 degree angle

• Coating Type
• None (Raw uPVC)

• Color
• Grey

• Connection
• Other, Spigot End

• Connection Type
• Spigot

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• As per standard/size

• Material
• Other

• Material Grade
• Type B uPVC

• Outer Diameter
• 63 mm - 315 mm

• Product Type
• Other, 45 Degree Spigot Bend

• Rated Pressure
• 4 to 10 bar depending on pipe rating

• Sealing Type
• Solvent Cement Joint

• Section Shape
• Round

• Shape
• Other, Bend (Elbow)

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• 0C to 60C

• Tensile Strength
• greater than 45 MPa

• Thickness
• 2.5 mm - 6 mm (varies with diameter)

• Tolerance
• 1 mm

• Usage
• Plumbing, Drainage, Sewerage

• Yield Strength
• minimum 38 MPa

• Application
• other, Industrial and Domestic Water Supply

• Bend Radius
• Fixed

• Color
• White

• Connection
• Other, Spigot

• Connection Type
• Spigot

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• 180 mm

• Material
• PVC

• Material Grade
• Virgin PVC

• Outer Diameter
• 110 mm

• Product Type
• Other, Spigot Cross Tee

• Rated Pressure
• PN 10

• Sealing Type
• Solvent Weld

• Section Shape
• Round

• Shape
• Other, Cross Tee

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -10C to 60C

• Tensile Strength
• 45 MPa

• Thickness
• 3 mm

• Thread Type
• Non-threaded

• Tolerance
• 0.5 mm

• Usage
• Plumbing and Pipe Fitting

• Yield Strength
• 35 MPa

• Application
• other, Pipe fitting, Branching of pipeline

• Bend Radius
• Fixed angle (Y)

• Coating Type
• Uncoated

• Color
• Grey

• Connection
• Other, Spigot

• Connection Type
• Spigot End

• Diameter
• 20 mm to 400

• Flexibility
• Rigid

• Length
• Varies by diameter

• Material
• Other

• Material Grade
• Virgin uPVC

• Outer Diameter
• 63 mm - 225 mm

• Product Type
• Other, Spigot Y Tee

• Rated Pressure
• 6 kg/cm2 to 10 kg/cm2

• Sealing Type
• Solvent Welded

• Section Shape
• Round

• Shape
• Other, Y-shaped

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• 0C to 60C

• Tensile Strength
• 42 MPa

• Thickness
• 4 mm - 12 mm (varies by size)

• Thread Type
• Not threaded

• Tolerance
• 1 mm

• Usage
• Water Supply, Plumbing, Drainage

• Yield Strength
• Approx 45 MPa
